Engineered for the demands of maritime freight and heavy-industry distribution, these initial configurations highlight structural integrity and customization:
As the primary logistics hub of Northern Europe and the home of the Port of Hamburg, Germany's largest seaport, the Metropolitan Region of Hamburg operates on rapid throughput and high-capacity storage requirements. Industrial areas ranging from Wilhelmsburg and Harburg to Billbrook house extensive logistics parks, metal supply centers, aerospace manufacturing hubs, and lumber distribution networks. The dynamic operational environment requires robust, high-efficiency space utilization solutions capable of handling oversized, high-mass goods.

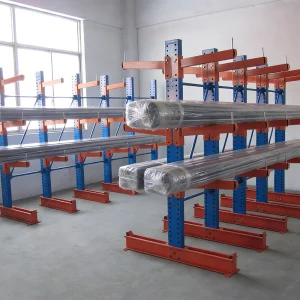

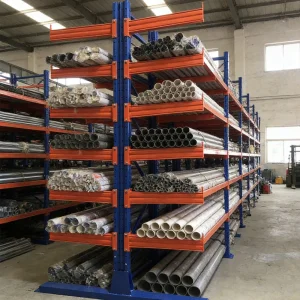

Cantilever racking is critical for operations managing non-palletized, long loads. Unlike standard pallet racks which restrict structural configuration due to front uprights, cantilever racks provide uninterrupted horizontal space. This design is essential for storing:
Largest Port in Europe
TEU Annual Cargo Flow
DIN EN 15635 Compliant
Marine Corrosion Class Galvanization Available
Our engineering roadmap emphasizes high-tensile structural steel (Q355B and European equivalent S355JR) combined with advanced mathematical modeling for load stress points. Standard roll-formed steel provides excellent flexibility for light to medium duties. However, heavy-duty applications in Hamburg's industrial hubs rely on structural I-beam sections to maximize structural integrity and resistance to forklift impact.
In accordance with German DGUV Rule 108-007, our arms are designed with an upward incline (typically 2% to 4%) to compensate for natural loading deflection, preventing materials from slipping forward under peak loads.
Given Hamburg’s maritime, high-humidity, and saline environment, outdoor installations require ISO 1461 hot-dip galvanizing with a coating thickness of up to 85 microns to protect against corrosion.
Utilizing high-tensile Grade 8.8 bolts combined with pin-locking systems, our rack arms adjust vertically at pitches of 75mm or 100mm, accommodating variable stock profiles without compromising system load capacity.
| Profile Specification | Material Grade | Load Capacity per Arm (kg) | Surface Treatment | Optimal Hamburg Application |
|---|---|---|---|---|
| Light Duty (Roll-formed 150-200mm) | Q235B / S235JR | 200 to 800 | Electrostatic Powder Coating (60-80μm) | Plumbing pipelines, plastics, light timber |
| Medium Duty (IPE 140 - IPE 180) | Q355B / S355JR | 800 to 1,800 | High-durability Powder Coating | Extruded aluminum, profiles, building panels |
| Heavy Duty (IPE 200 - IPE 300+) | Q355B / S355JR | 1,800 to 5,000+ | Hot-Dip Galvanized (ISO 1461) | Steel pipes, heavy sheet metal, port logistics cargo |
Exporting industrial warehouse systems to Germany requires strict adherence to European normalization (EN) codes and national regulatory frameworks. Any warehouse racking operating within the European Economic Area must display clear safety labeling and withstand continuous external audits.
We provide comprehensive technical documentation, load plaques, and safety guidelines matching DIN EN 15635. This governs the installation, maintenance, and mandatory annual inspection schedules of steel static storage systems.
All rack frames, vertical columns, and arm components undergo structural verification to prevent collapse from accidental vehicle impact. Footplates are anchored with multiple heavy-duty expansion bolts to concrete slabs calculated for localized seismic and dead-load distributions.
Every production run for export to Hamburg contains material trace certificates (EN 10204 3.1) proving raw material yield strength and chemical composition, ensuring long-term reliability and insurance compliance for German operations.
Dongguan Hui Lian Intelligent Warehouse Equipment Co., Ltd. is a specialized warehouse storage equipment manufacturer, combining structural design, high-precision automated manufacturing, and global export capabilities. Founded in 2016, the company operates a state-of-the-art 18,500㎡ production facility utilizing automated processes to ensure dimensional accuracy and consistent quality.
With over 15 years of industry experience, 8 years of international export experience, and an annual export revenue of US$18 million, Hui Lian serves industrial and logistics markets globally. Our operations are supported by a network of more than 850 supply chain partners, enabling stable material sourcing and competitive lead times.
Modern Manufacturing Base
Professional R&D Engineers
Dedicated QC Inspectors
New Products Developed Annually
Hui Lian's manufacturing facility uses advanced production machinery and strict quality control measures at every stage, including raw material testing, welding inspections, dimensional tolerance checks, and load verification. The following steps outline our standard production process:
We provide heavy-duty cantilever solutions designed to optimize floor space, reduce material damage risk, and support efficient inventory access across various industries:
Supports high-capacity storage of raw timber bundles, chipboard, MDF, and custom carpentry products. Our configurations feature wide structural column centers to prevent sag in wood profiles during long-term storage.

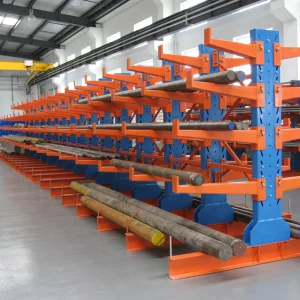

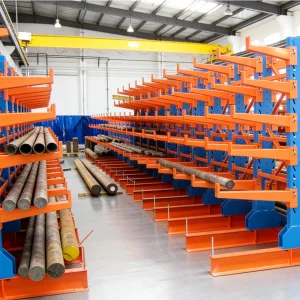

Heavy I-beams and high-load structural configurations safely support round steel stock, structural beams, rebar bundles, and industrial piping, keeping heavy materials off the floor and easily accessible.
Designed for the high-volume requirements of the Port of Hamburg. Single-sided and double-sided structures organize transit stock and heavy freight awaiting container loading or local distribution.

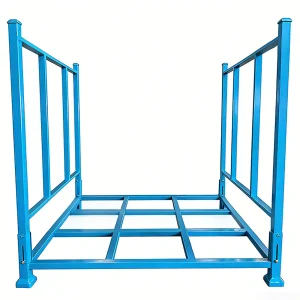

Explore our full line of industrial warehouse solutions, ranging from heavy-duty pipe storage cantilever racks to heavy stackable systems and components:

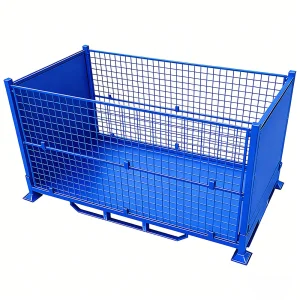

We design and manufacture complementary systems to support warehouse spatial efficiency. The following components integrate with our primary racking installations:
Answers to common technical, compliance, and logistical questions regarding industrial racking systems destined for Hamburg and the wider German market:
For outdoor installations in Hamburg, wind-zone structural calculations (under DIN EN 1991-1-4) are required due to the coastal wind profiles of Northern Germany. We verify base anchoring, column profiles, and bracing assemblies to meet regional design criteria. Standard finishes for outdoor systems include hot-dip galvanization to ISO 1461, providing protection against coastal corrosion (C3 to C5-M classes).
Load capacity depends on arm length (typically 600mm to 2000mm), steel grade (Q235B or Q355B), and vertical profile (roll-formed C-channels versus structural IPE shapes). We calculate and load-test each component to include a safety factor of 1.5, ensuring compliance with DGUV rule 108-007.
Our 56-person QC team monitors the production line from raw material receipt to final packaging. Using digital vernier calipers, micrometers, coating thickness gauges, and automated load-bearing test rigs, we verify material tolerances and structural performance. Every export shipment includes trace certificates and quality reports.
Production lead times range from 20 to 30 days depending on system customization. Shipments are loaded into sea containers (20GP/40HQ) at nearby ports (Shenzhen or Guangzhou) and shipped via direct ocean freight to the Port of Hamburg. Total transit times range from 30 to 40 days.
Yes, we support customization for corporate colors using the standard RAL color system. The powder coating is applied through an automated electrostatic spray line and oven-cured to provide a scratch-resistant, industrial-grade finish.
We provide structural engineering calculations, CAD layouts, and cost-efficient freight options for projects in the Hamburg metropolitan region.
